Trial Mode / 2 WEEKS
Precise Angles Panel
Shortcuts for Activation, Hiding, Preferences, Presets Cycling, Ruler Tools, Precise Angles
Ruler Tools: Linear, Linear Bendy and Circular, Elliptic
3 Stroke smoothing methods: Position Pull, Fluid Position and Physics
Pressure buffer and smoothing
Pressure mapping – linear, bezier and draw, undockable
Exchangeable/shareable presets (.hs3 file)
Presets managing, undockable
Configureable indicator (color/alpha)
New on-screen UI – with Auto-Collapse feature
Always free basic smoothing
OS X 10.11 / El capitan
macOS 10.12 / Sierra
macOS 10.13 / High Sierra
macOS 10.14 / Mojave
Online access for activation.
HUION - Position algos finally work! (Including the ruler.)
download and open “Hej Stylus! V3 Installer.pkg”
Follow the instructions given in the installer.
Hej Stylus! V3 starts automatically, a folder with the application and presets file opens
find Hej Stylus! in /Applications/Hej Stylus V3/Hej Stylus V3.app
For Mojave Users: you will be prompted to allow Hej Stylus! to control your mac. Hej Stylus! needs this to function correctly.
Open system preferences/Security&Privacy/Privacy/Accessibility , click on the lock, enter your system pass, click on the plus icon and navigate to Hej Stylus! and you’re good to go.
Please note: We’ve changed our application host platform from Gumroad to Paddle starting with Hej Stylus! V3.2.0. If you owned V3 before check on your email - subject: We’re moving - please update right now! All instructions are in there.
FIRST RUN & PREFERENCES
On the first run you will see this screen.
You have options:
Continue your 14 days trial
Activate your already obtained License
Buy a license

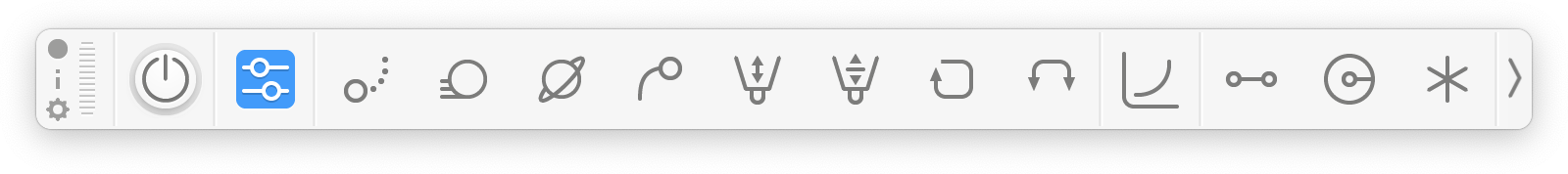

Trial / Full vs. Free Basic Version

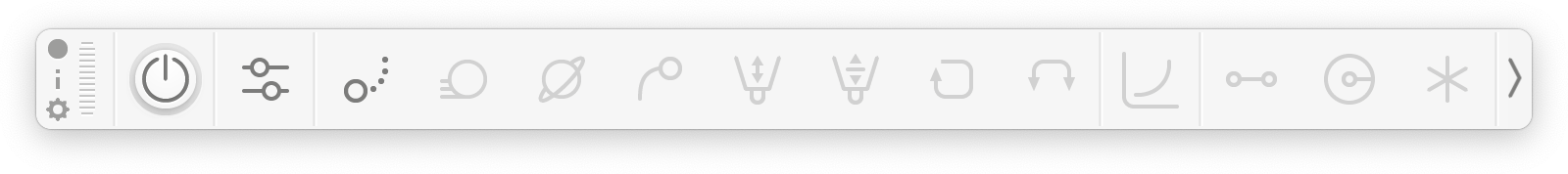

Note: When the trial period is done ‘Continue Trial’ changes to ‘Cancel‘. By hitting it you can enter ‘Free Basic Version‘. Only ‘Position Pull’ can be activated.

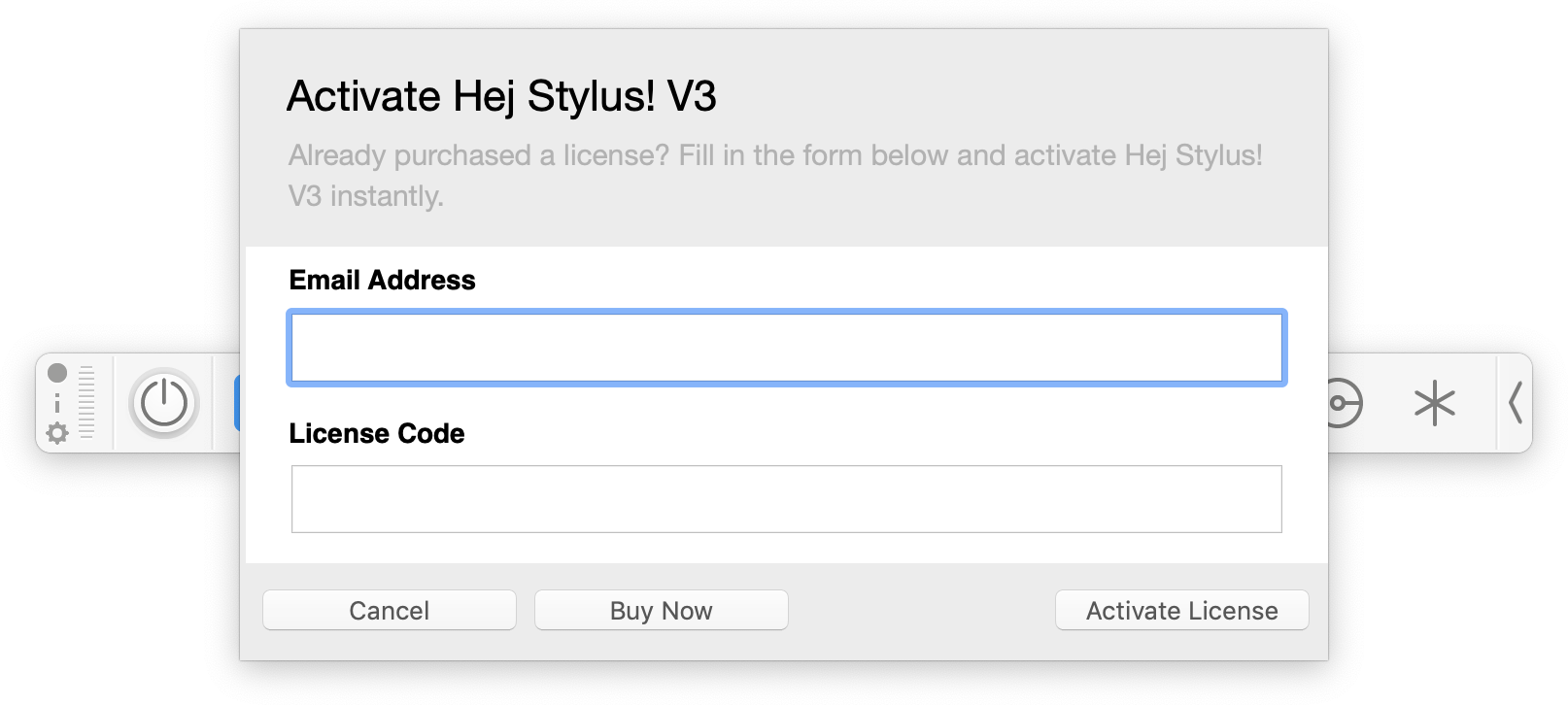

After choosing option two ‘Activate License‘ (see above) you have to enter your email and the license code:
Launch on Startup
Highly advised. :D
Deacivate on Eraser
…also highly advised.
Make your custom cursor color.
Define the Alpha to be less prominent.
Set to zero to have no indication at all.
If you're distracted by the bendy line
make it a stick! It only influences the Position Pull indication!
Auto Focus on Menu Hover
Hej Stylus! catches your cursor when moving into it's perimeter – it saves a click but can be distracting. If so: deactivate!
The Ruler has a configureable freehand detection radius.
Set it in the preferences.
Values between 1 and 250 (Pixels) can be entered.
(Change Value, press Enter)

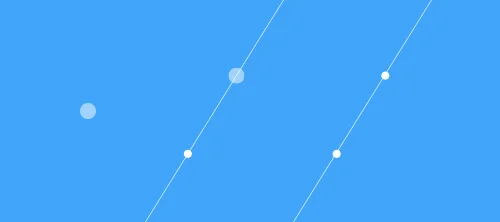

How it works:
Instant drag – determines your moving vector and locks the cursor movement.
(The locking distance in px can be adjusted in the preferences.)
One click–locks one point of the ruler.
One tlocked and drag – draws a line towards/away from the locked point.
Second click–locks the second ruler point.
Two points locked - drag anywhere to make a line in the specified angle.
Points can now be dragged around for changing the ruler angle. Clicking on one of the points releases it, double-clicking releases both.
Pro Tip: Check ‘Deactivate on Stylus Eraser’ in the preferences – makes navigation with the backside of your pen and activated ruler easier.
Version 3.2+ is supporting custom shortcuts.
Click in the field next to the desired function and perform the shortcut as you want it to be. If it is refusing yours then try another one.
To assign a new shortcut press the x and record a new one.
Pro Tip: After setting up the shortcuts in Hej Stylus! quit and set up the desired shortcuts in the Wacom driver for express buttons or pen button(s). Big timesaver!
This is a Hej Stylus! preferences file (.hsv3).
Save your favorites and send them to a friend. ❤︎
V3 NOT OPENING?
In some cases Hej Stylus! preferences seem to interfere with the new versions preferences.
Open Terminal app and enter: defaults delete com.eilertjanssen.HejStylus3
This will delete Hej Stylus!' preferences and make the new Version run properly.
GLITCHY POSITION IN ADOBE Ai / An
If your cursor seems to be glitching when using Illustrator or Animate try Wacom driver 6.3.20-11. This should solve your issue.
Unfortunately pressure-related issues arise when using this diver. We're in contact with Wacom – to make both functions work side by side.
Another possibility to overcome this issue is running Hej Stylus! in Root-User mode. Check it out here: https://support.apple.com/en-us/HT204012
PHOTOSHOP - CS6 with High Sierra ISSUES
Photoshop CS6 Window is popping under second frontmost application.
This is actually a PS-bug and it is filed here. PSCS6-BUG
Answer to my request: "Photoshop CS6 is no longer being developed and is not officially supported on macOS High Sierra. That said, what you are showing is standard behavior for macOS."
1.0.0 – Initial build
Support for OS X 10.8.5+
Indicator will be drawn on any screen in dual screen mode
New setup of the radii selector (changed from 20, 100, 250, 500 to 10, 50, 100 ,500)
Smoothing deactivation whilst dragging the slider - for comfy sliding
Icon fixed for low screen resolutions
right click feature implemented for menu bar icon in 10.8.5 and 10.9 (additionally to CTRL+click)
Shortcuts to toggle on/off, increase and decrease radius
showing indicator on scaling with shortcut
fixed Gumroad 'already purchased' - bug
fixed licensing full version bug
fixed Ninja-mode-bug on black menubar
fixed off-set indicator when hooking to a monitor whilst Hej Stylus! is running
fixed right-click issue on 10.10 and 10.11 – occurred after fixing Ninja-mode-bug – Dang Ninjas!
There is a known bug when initializing Hej Stylus! fails – an off-set indicator. Please restart Hej Stylus! . Done. This issue is resolved in Hej Stylus! v2.0.
There is a known bug using Hej Stylus! in combination with Illustrator, Cinema 4D's sketch-tool and CSP(rare case). Please roll back to Wacom driver 6.3.18 or lower to solve this issue. This issue is resolved in Hej Stylus! v2.0.
This Version is basically the 1.0.3 version with the latest fixes for Wacom users (aka Illustrator-bug) that are running a system below OS X 10.10. Hej Stylus! version 1.0.4 will only be delivered as optional download for Hej Stylus! 2.0 customers.
2.0 – Initial build
2.0.1 – Sticky Key Fix Version
Fixed Sticky-Modifier-Key-Bug (Please add Hej Stylus! to the list of apps that control your computer to make it happen. System Preferences > Security > Privacy Settings)
2.0.2 – Various fixes
Fixed demo duration
Pressure Mapping points did align – now gone!
License field fixed
Fixed font issues – aka Ninja-Menu-Items-Bug
Fixed mission control & windows content display issue
Implemented Privacy Settings request – to be able to reset Sticky-Modifier-Key-Bug
3.0.0 – Initial build
Completely recoded - faster & leightweight coding
Completely redesigned – new on-screen UI & Icon driven approach
Auto-hiding slider panel (sensing if placed on bottom ot top of the screen)
Improvements on all algos we're using – you'll feel it!
Easy-access Presets with ad-hoc editing capability (Panel adapting size according to presetname length)
B) NEW FUNCTIONS
Physics Smoothing consisting of 2 Sliders (Physics & Space Constant) with follow-up function
– Yes, this smoothing uses actual physics!
Draw Pressure Mapping Panel – another way of maipulating the pressure generated by your stylus
3.0.1 – Various fixes
Preset-making turned off Fluid Tilt in some cases – fixed!
Deactivate stylus on eraser had to be initialised after restarting Hej Stylus! – now fixed!
Hej Stylus! menu could slip off-screen when running with single / multi screen setups – fixed that.
Various instances could be opened – fixed.
Info overlay froze – de-iced that one!
Added option to alter auto-catching the cursor when entering Hej Stylus!' perimeter.
3.1.0 – The Ruler Edition
New feature: The Ruler with preset-able position
Undockable Presets and Pressure Maps
Auto collapse Hej Stylus! UI
Lots of under the hood improvements
3.1.1 – Various Fixes
The preset window was not showing up after making a new preset – fixed.
Fixed License String Length issue.
Fixed a Physics bug that could stop Ps.
3.1.2 – More Fixes
Choosing a different colorspace than RGB when setting the indicator's color could result in crashing Hej Stylus!.
UI fixes: The undockable Pressure Mapping Panel wasn't displaying content correctly.
Linear Pressure Mapping clamped values wasn't acting as expected.
3.2.0 - The Shortcuts Edition
Added configureable shortcuts for: Toggling on/off, Preset previous/next, Activate/Deactivate Ruler (tool), Hide/Unhide Toolbar
UI Fix: Undocking Presets Window now catches up with popup size.
Reactivating Position Smoothing Algos after using Ruler Tool.
Fixed a Ruler-offset issue with dual screen setup and working on secondary screen.
Now auto-catch-cursor function when hovering over detached Preset or Pressure Mapping window.
Hiding detached Preset and Pressure Mapping windows when Hej Stylus!' Toolbar is hidden.
Fixed an issue regarding the placement of Hej Stylus!' Toolbar when changing primary/secondary screen setups in mac preferences.
In-app purchase and activation on-line!
Basic HUION - support. (So far position algorithms do work.)
3.2.1 – Various Fixes
macOS 10.11 – El Capitan – Toolbar not unfolding - fixed
macOS 10.12 – Sierra – Preferences window not showing up - fixed
3.3.0 - The Early Santa Edition
Added a bending and moving feature to the linear ruler
New Tool: Circular Ruler
3.4.0 - Precise Angles Edition
New Tool Panel: Precise Angles - draw in up to 6 fixed angles simultaneously
